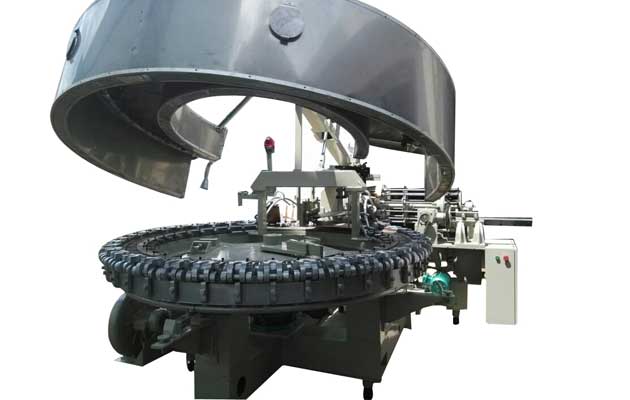

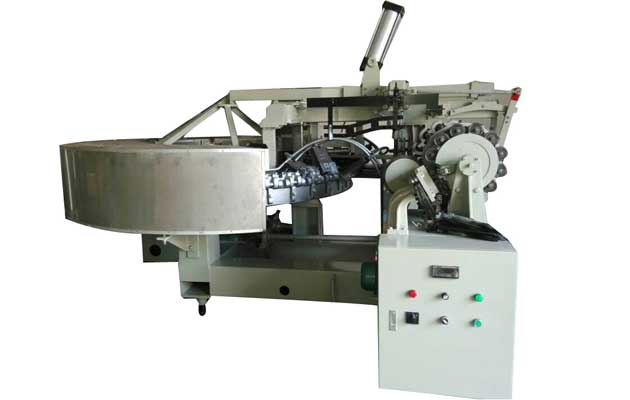

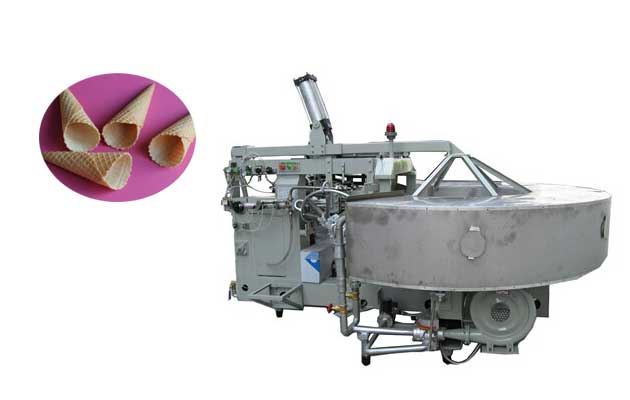

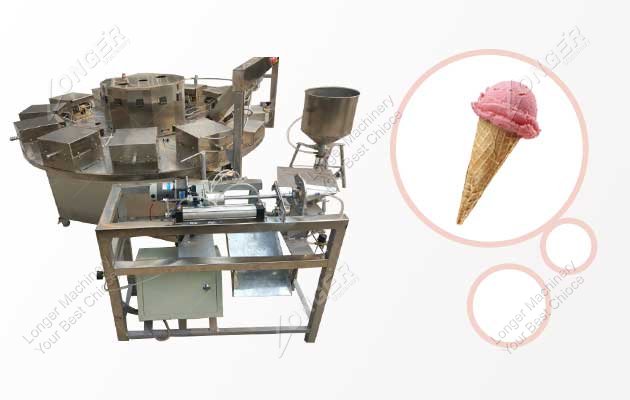

The crisp ice cream cone making machine is used to make a rolled sugar cone,waffle cone. It provides a cone for the next stage of ice cream. First, it places the batter on a baking tray, then prepares them, rolls them up, and finally rolls them up. It is the main equipment of the production line.
Our the crisp ice cream cone making machine with many advantages such as stainless steel, simple operation and high efficiency. Low noise, high capacity and low power. Easy to operate, easy to clean.
This is our crisp ice cream cone making machine working video on Youtube.Any problem you can contact me freely or leave message on our website.
Model |
LG40 |
LG36 |
LG30 |
Capacity |
2400pcs/h |
2100pcs/h |
1800pcs/h |
Finished Product Size(22.5°) |
48-52mm |
52-58mm |
58-68mm |
120-135mm |
135-140mm |
140-165mm |
Power |
|
|
|
LPG consumption |
4kg/h |
4kg/h |
4kg/h |
Compressed air pressure |
0.6MPA |
0.6MPA |
0.6MPA |
Compressed air consumption |
6 MPa |
6 MPa |
6 MPa |
Weight |
3000kg |
3000kg |
3000kg |
Outline size |
3000*2000*1680mm |
3000*2000*1680mm |
3000*2000*1680mm |
