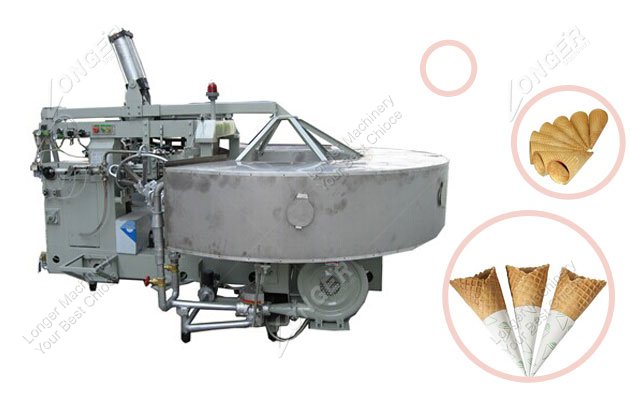

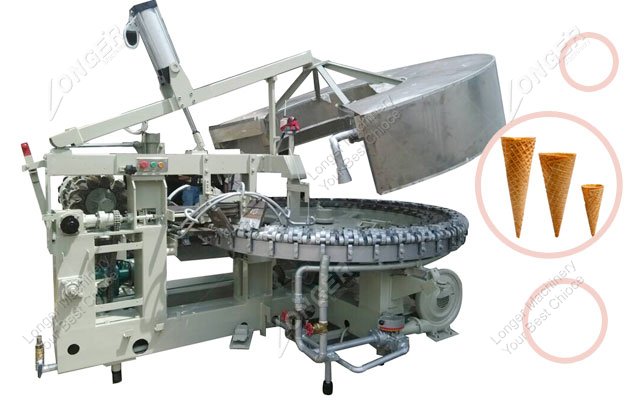

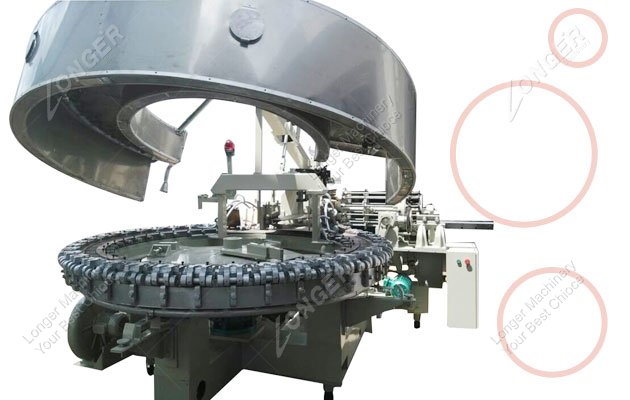

The Automatic Ice Cream Waffle Cone Machine is used for rolling sugar cones. It offers cones to the next process to be filled with ice cream. First it dispenses batter on the baking plates to prepare the wafers for shaping, and then rolls them up, keep them in shape unload them finally. It is the main device of the production line. Excellent performances have allowed Intentional Standards to be comfortably met.
Usually our machine guarantee is 1 years, and we will keep contact with our customers for after-sale servise, we aim to produce better machines and make our customers satisfied.
Model |
LGTT-25 |
Voltage |
380V |
Power |
1.5KW |
Weight |
3000KG |
Capacity |
2500pcs/h |
LPG Consumption |
4KG/h |
Compressed air pressure |
0.6MPA |
Dimension |
3200*2700*1900mm |
product size(22.5 degrees) |
caliber |
42-48mm |
|
length |
100-115mm |
product size(17.5 degrees) |
caliber |
38-44mm |
|
length |
110-125mm |
