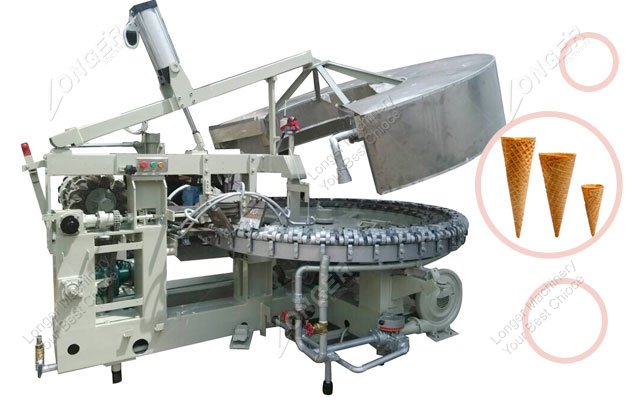

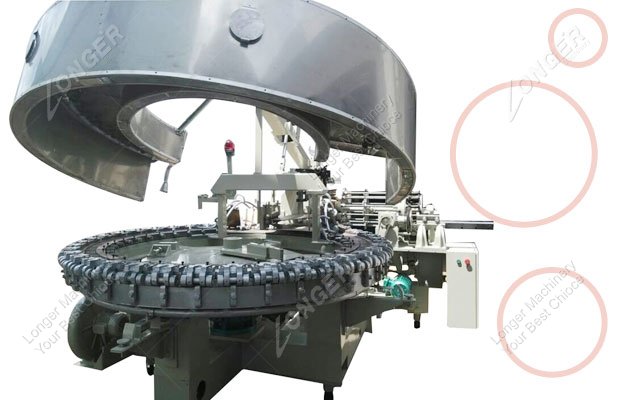

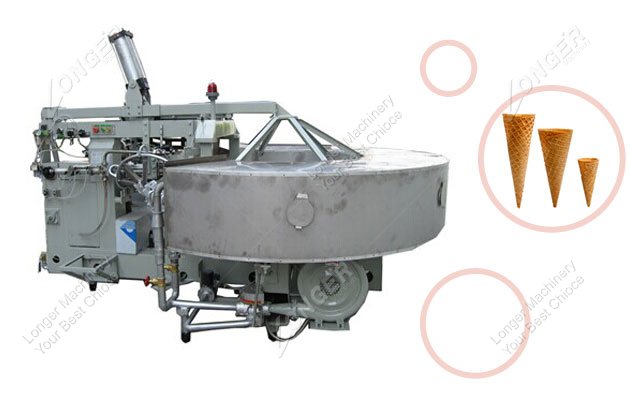

The Automatic Waffle Cone Maker Machine is used for wafer cone,also called rolled sugar cone and ice cream cone.It offer cones to the next process to be filled with ice cream.First it dispenses batter on the baking plates to prepare the wafers for shaping,then rolls them up,keep them in shape unload them finally.It is the main device of the production line.
We have many different molds for different size and shape cones, and you can replace the molds on the machine. We also have many different capacity products, you can choose different baking numbers of the machine according to your need. We can produce the goods as your requirements.
Model |
LG40 |
Capacity |
2400pcs/h |
Finished Product Size(22.5°) |
48-52mm |
|
120-135mm |
Power |
|
LPG consumption |
4kg/h |
Compressed air pressure |
0.6MPA |
Compressed air consumption |
6 MPa |
Weight |
3000kg |
Outline size |
3000*2000*1680mm |
