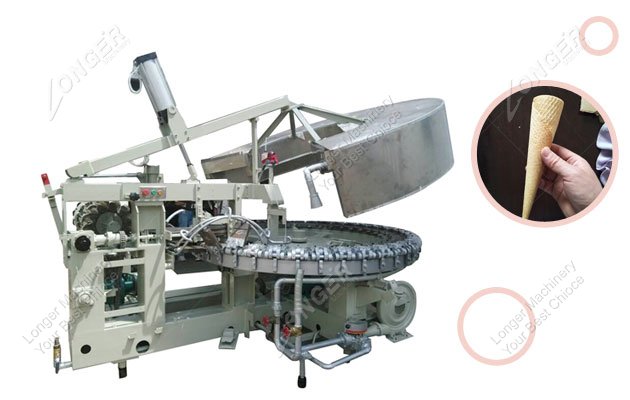

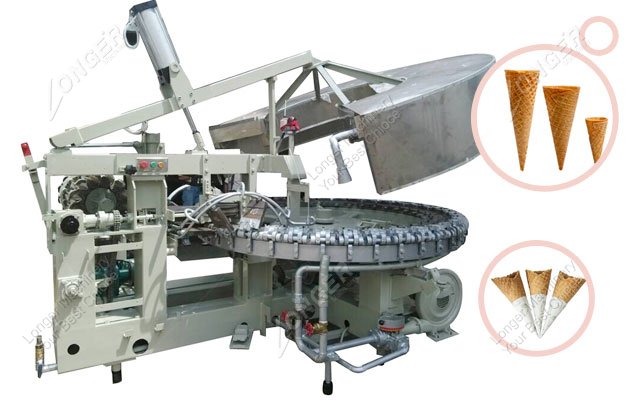

The Energy Efficient Waffle Cone Machine is fully automatic to make ice cream sugar cone with high quality.The machine can make sugar rolled cone,egg roll,round thin biscuit,wafer biscuit and bowl-shaped cup.We can design the different baking machines to make different types of sugar rolled cones as required by clients.
This machine can automatically inject materials into baking template quantitatively, automatic clamping. Raw material injection quantity can be adjusted according to the product requirements, flexible adjustment, stable injection rate, uniform egg cake thickness, with fast production speed, small volume, simple operation. This ice cream cone baking machine can realize automatic temperature control, automatic feeding, suitable for small and medium-sized food factory. Many types template pattern for selection, client may choose and buy according to the actual needs, the mould of baking plate can be customized, so one machine can produce different size and shape ice cream cones.
Model |
LG30 |
Capacity |
1800pcs/h |
Finished Product Size(22.5°) |
58-68mm |
|
140-165mm |
Power |
|
LPG consumption |
4kg/h |
Compressed air pressure |
0.6MPA |
Compressed air consumption |
6 MPa |
Weight |
3000kg |
Outline size |
3000*2000*1680mm |
